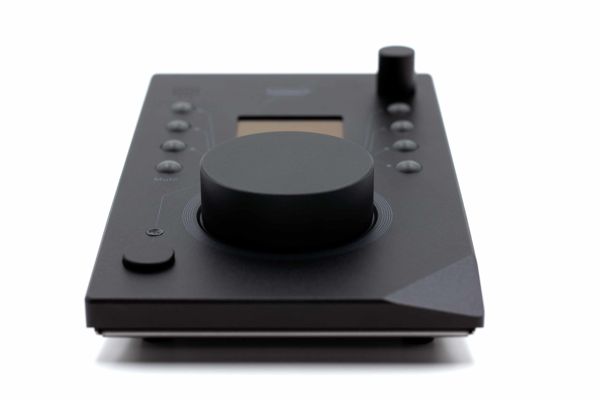

Perfect Monitoring At Your Fingertips
Being at the heart of your studio, we designed this new unique monitor controller to be the extension of our world renowned calibration and digital room correction solution.With it’s built in screen you are always sure to benefit from a perfectly constant calibrated level during your work hours.

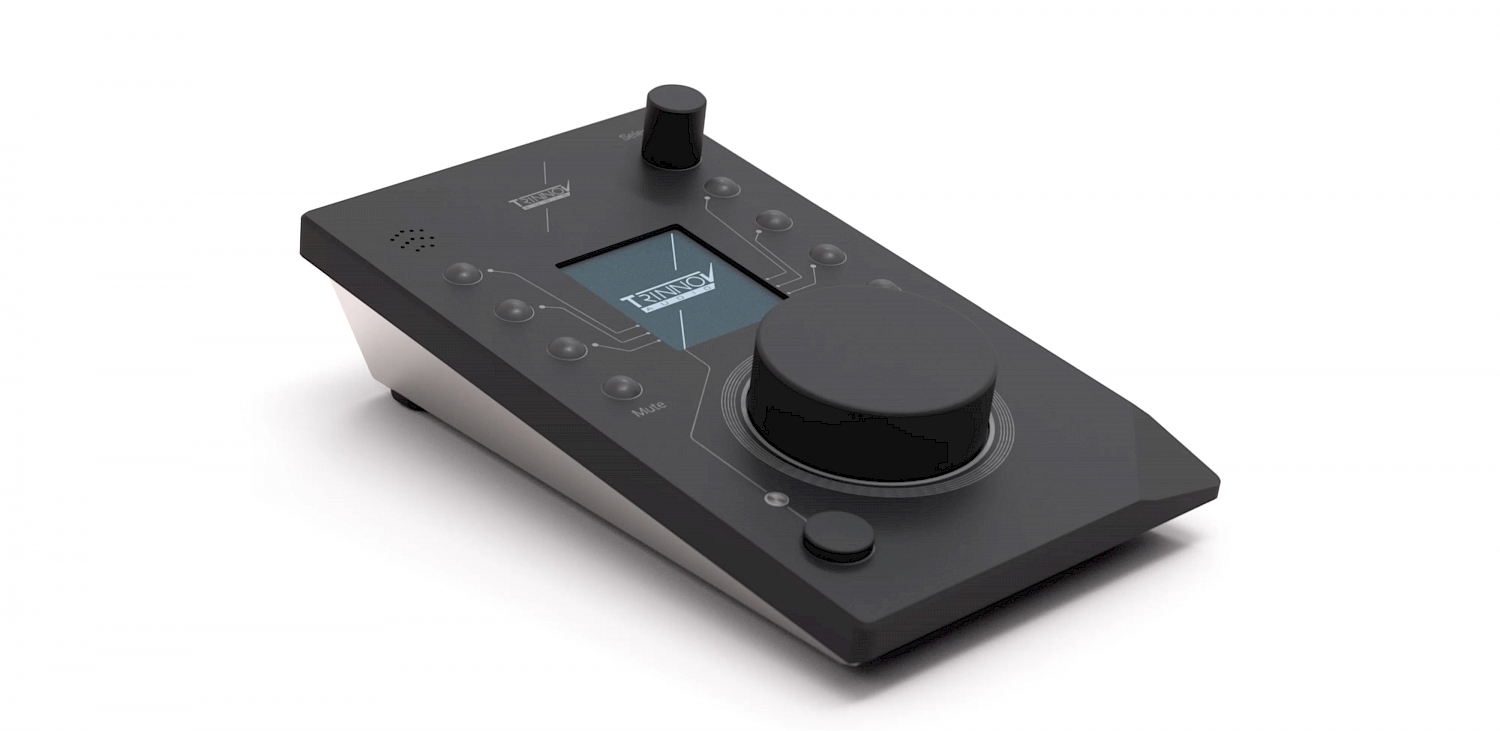

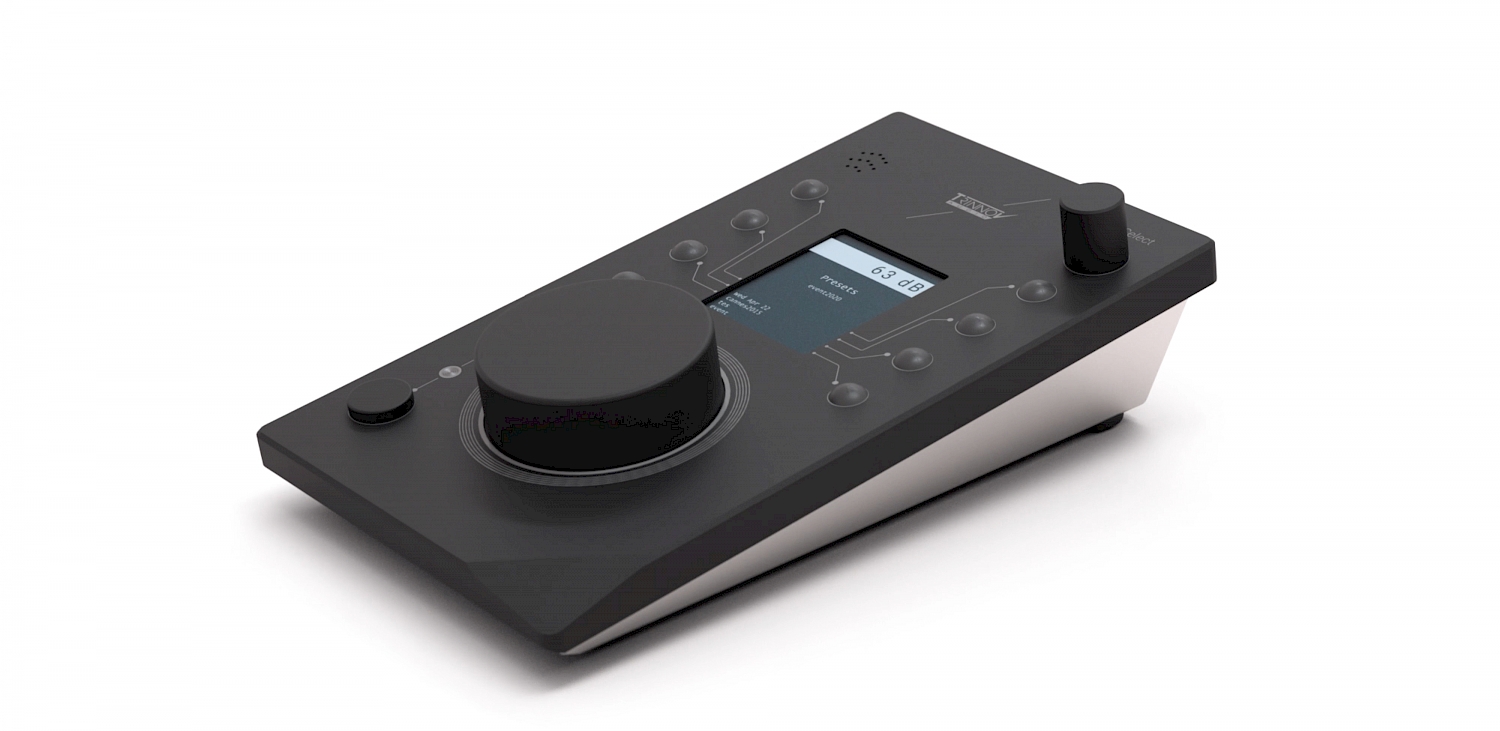

Hardware Specifications
- Display: LED dimmable display
- Power: Standard USB Type B (2m cable provided)
- Volume encoder: Custom-made magnetic encoder
- Select button: Rotary knob for specific controls
- Assignables buttons: x7 with white backlight +1 with LED
- Mute Button: x1 with red backlight
- Talkback microphone: Built-in
- Automatic Firmware Update: Yes

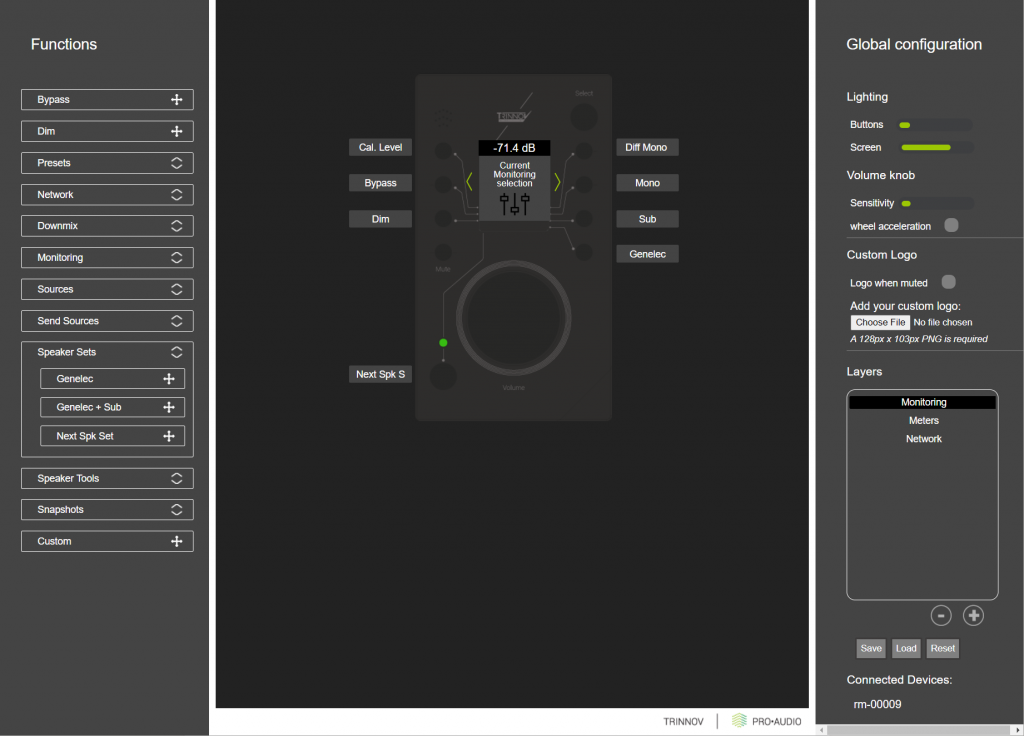

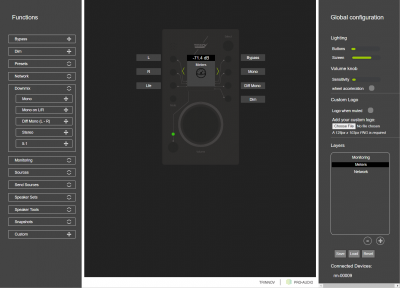

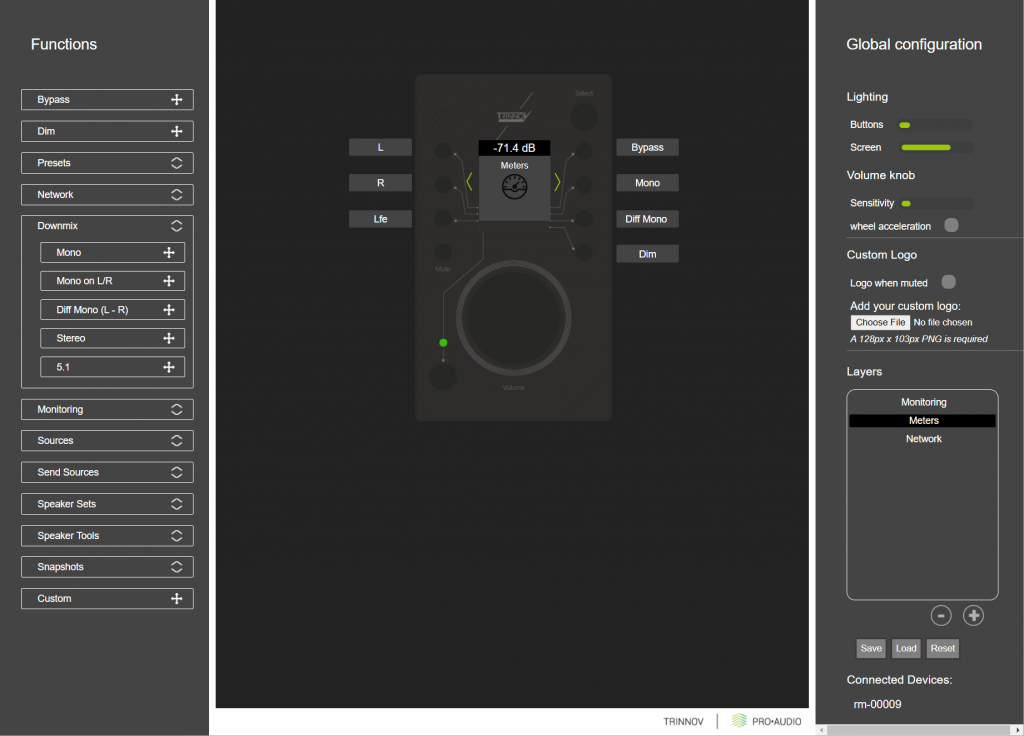

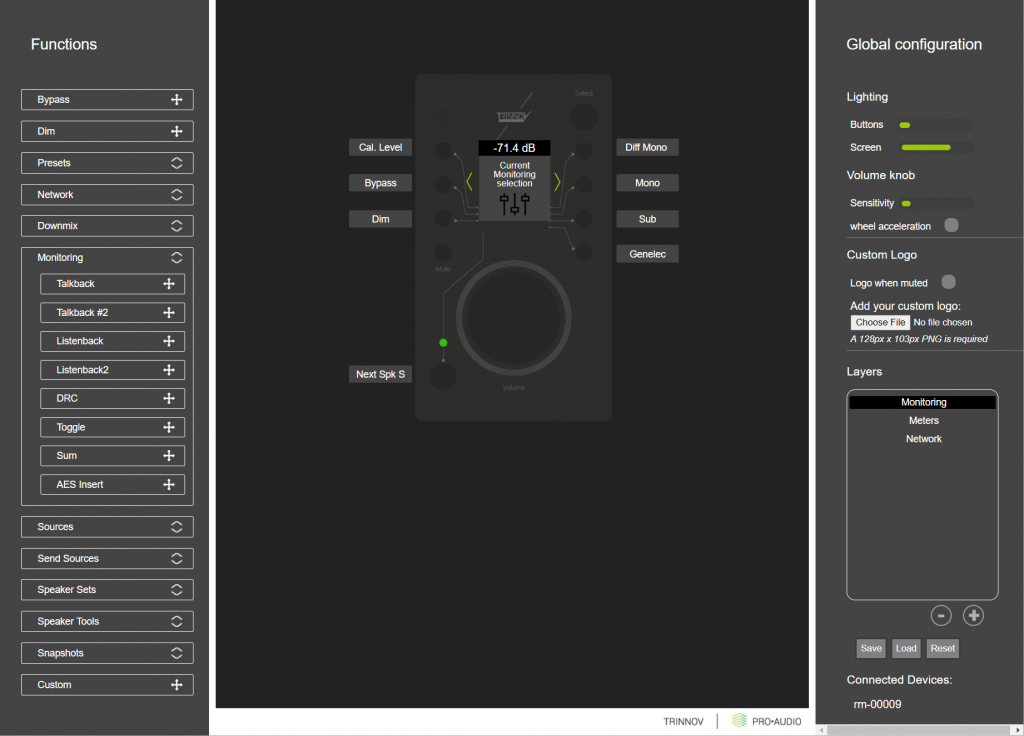

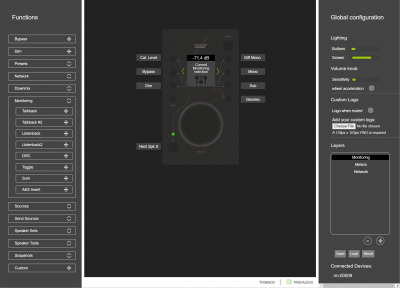

- Connection through Trinnov app: Yes
Features (all products)
- Brightness Control: Display and buttons
- Preset / Profile recall: Yes
- Downmix toggle: Yes
- Bass Management: Yes
- Bypass: Yes
- Speaker Solo/Mute: Yes
Features (D-MON only)
- Speaker/Source Selection: Yes, toggle or sum

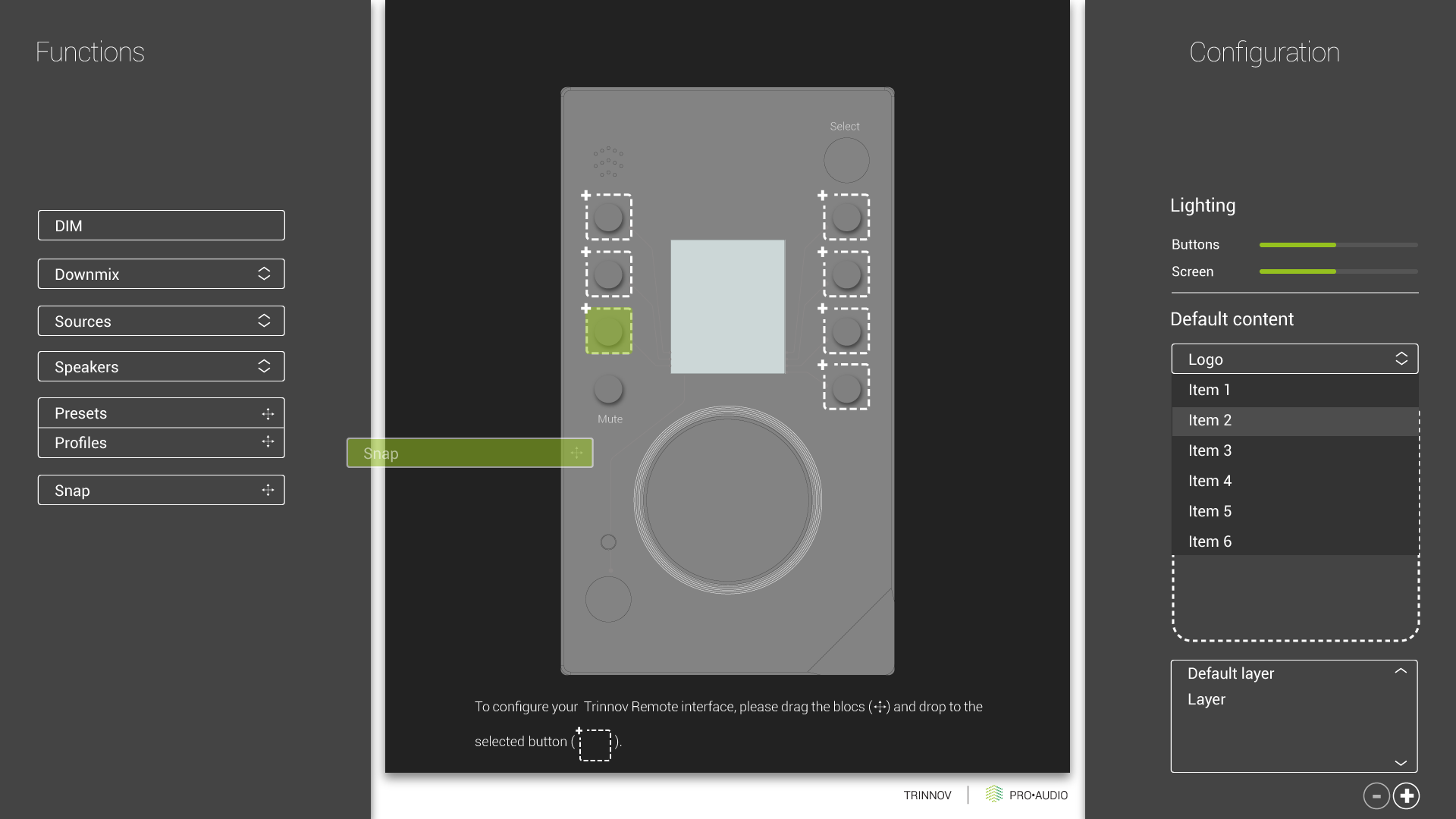

- Customizable layouts: Yes
- Snapshot Recall: Yes
- Headphone Volume: Yes
- Talkback: Yes

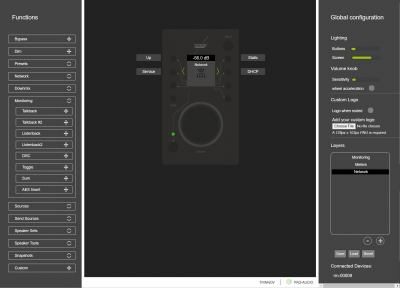

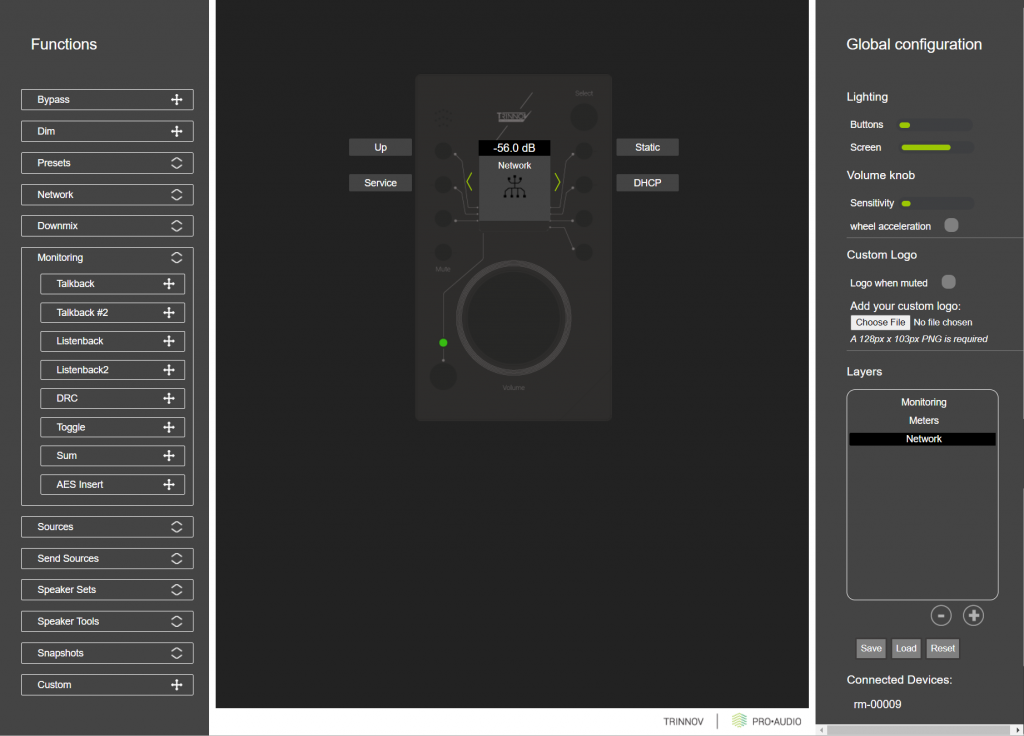

Network Control
- Processor's IP address recovery: Yes
- DHCP activation: Yes
Warranty
- Standard Warranty: 2 year
- Transferable: Yes
Weight & Dimension
- Dimensions (W x H x D) mm: 105 x 63 x 187
- Dimensions (W x H x D) inches: 4,13 x 2,48 x 0,74
- Shipping box dimensions (W x H x D) cm:
- Weight:
- Shipping weight / volume:
